At Tempro, we designed our Two-Stage Heating and Cooling Thermostats to efficiently manage heating and cooling systems in industrial and commercial environments. This thermostat is ideal for HVAC, refrigeration, and any setting that demands reliable temperature control.
Want a downloadable PDF guide for easy access? Get it here.
Two-Stage Heating and Cooling Thermostats – Designed for Demanding Environments
These thermostats feature a durable NEMA 1 enclosure made from steel or stainless steel, or NEMA 4X rated enclosure providing reliable protection against dust, light exposure, minor moisture or wash down environments. Two-stage line voltage thermostats are equipped with a fixed bulb or remote sensor, ensuring accurate temperature monitoring in typical indoor or outdoor environments.
Dual-Stage Functionality

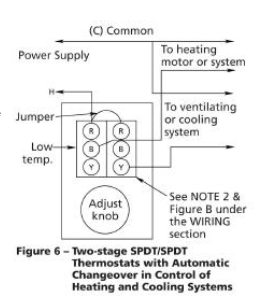

Two-Stage Control: The thermostats use dual SPDT switches to manage heating and cooling. When temperatures rise above the set point, the first switch disconnects the heating system. SPDT/SPDT units can also be used to control a combination heating and ventilating or cooling system, as shown in Figure 6 to the right. A temperature increase to the knob setting will turn off the heating system when the Red-Blue contacts of the low-temperature switch break. An increase in temperature of about 3°F will turn on the fan or cooling system through the Red-Black wire of Red dot, Yellow dot contacts of the high-temperature switch.
Temperature Adjustment: If the temperature increases further by around 3°F, the second switch activates the cooling system or fan, keeping conditions stable.
Important Technical Specifications of
- Temperature Range: Works between 30°F and 110°F, with a differential of +/- 2°F.
- Sensor Type: Features a fixed or remote bulb sensor for consistent and precise readings.
- Branding Options: Available for private labeling to meet custom requirements.
Where to Use Two-Stage Heating and Cooling Thermostats
These models serve a variety of applications, including:
- HVAC Systems: Suitable for controlling climate in large commercial areas.
- Industrial Operations: Provide automated heating and cooling management for reliable performance.
- Refrigeration Systems: Maintain consistent temperatures to safeguard materials and equipment.
Tempro Two-Stage Thermostats offer effective control in industrial, ag and commercial systems. The dual SPDT switches ensure precise operation, and the sturdy NEMA 1 or 4X enclosures provide durability in various environments. With fixed or remote bulb sensors, these thermostats deliver consistent temperature monitoring, minimizing fluctuations.
Designed for HVAC, industrial, and refrigeration use, Tempro thermostats are reliable and adaptable, with options for private labeling to meet specific requirements.
For more details, troubleshooting, or support, visit the product page or contact us.
